FPG-QRCFFM
Flat Face Male Quick Release Couplers
Series conforms to ISO16028
Compatible with:PARKER FE and FF Series
STUCCHI A8008 Series
AEROQUIP FD89 Series
HANSEN QA29000 SeriesPressure Rated: 5000psiStandard Seal Material: NBRTemperature Range: -20° To +80°British Standard Pipe Parallel (BSPP) Thread

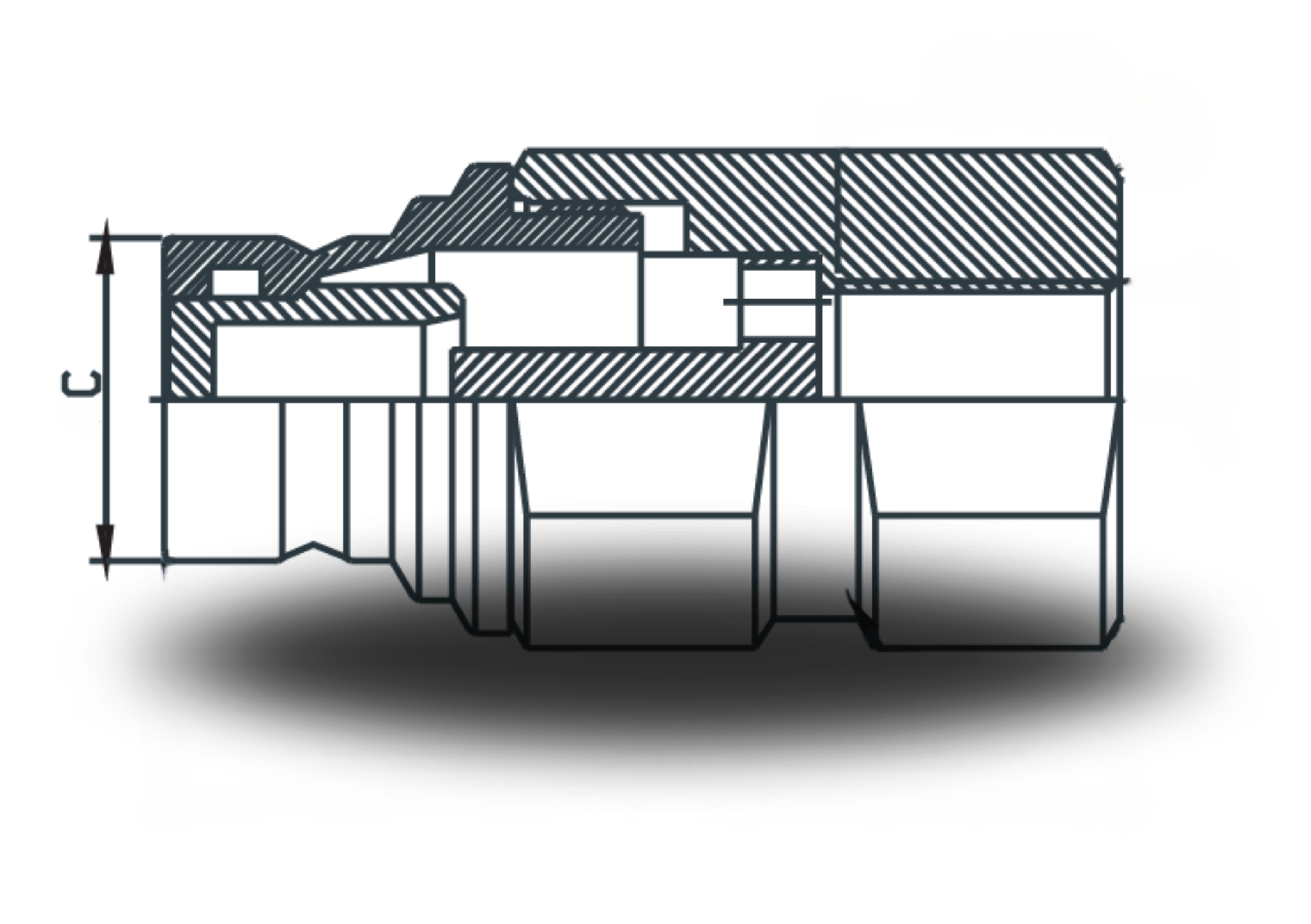

👉 Just measure “C” and find your matching part in the table below
| Part Number | Body (size) | Dimension "C" | Thread "T" | Price | Available Stock | Quantity |
|---|---|---|---|---|---|---|
| FPG-QRCFFM-02SF | 1/4" | 16mm | G1/4 | $28.55 | 98 | |
| FPG-QRCFFM-03-04SF | 3/8" | 19.7mm | G1/2 | $64.75 | 100 | |
| FPG-QRCFFM-03SF | 3/8" | 19.7mm | G3/8 | $54.65 | 100 | |
| FPG-QRCFFM-04SF | 1/2" | 24.5mm | G1/2 | $78.95 | 99 | |
| FPG-QRCFFM-06-04SF | 3/4" | 27mm | G1/2 | $88.95 | 100 | |
| FPG-QRCFFM-06SF | 3/4" | 27mm | G3/4 | $98.45 | 100 |
